The function of the pathological slide & paraffin block storage cabinet lies in storing relevant slides and blocks which carry patients' disease info and are crucial for diagnosis & tracking.
Its application scope mainly concentrates in the medical field, esp. hospital pathology depts. The daily work of the pathology department will accumulate a large number of sections and wax blocks. The storage cabinet provides a safe, orderly and easy-to-find storage space for these precious samples, ensuring the smooth progress of the medical diagnosis process.
SPECIFICATION
Cabinet: Formed by hot welding 1.0mm cold-rolled steel plate as a whole, and the surface is treated with degreased, pickled, and phosphated for rust prevention, then electrostatic powder sprayed with epoxy resin protective powder. To make thickness reach to 1.1mm - 1.2mm. , which has strong adhesion, wear resistance, and corrosion resistance after heat curing.

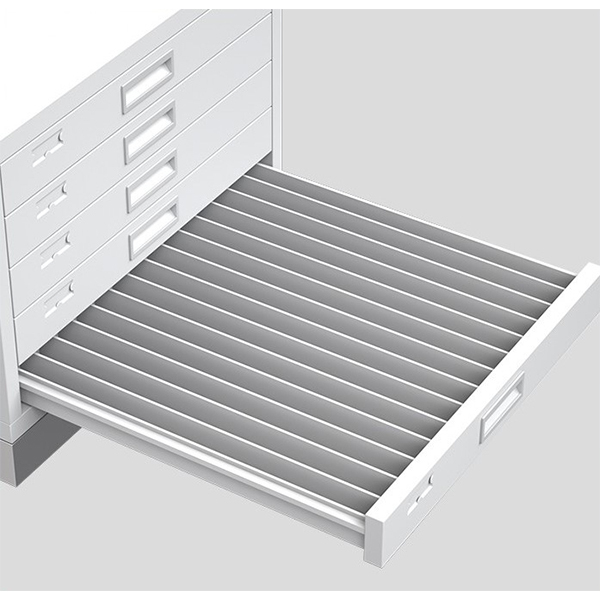

Drawer: made of 0.8mm cold-rolled steel plate, with vertical holes on both sides of the bent interior. It can be freely inserted into the grid according to different sizes of wax blocks, and different specifications of wax blocks can be placed.
Slides: made of imported wear-resistant ABS plastic pulleys, which not only allow for flexible bending in and out, but also facilitate the movement of wax blocks during storage.
Base: made of 1.2mm stainless steel plate welded as a whole, which is sturdy and can withstand the pressure of three sets of cabinets stacked together
SIZE AND CAPACITY
Size: W515 x D480 x H360mm (Single section)

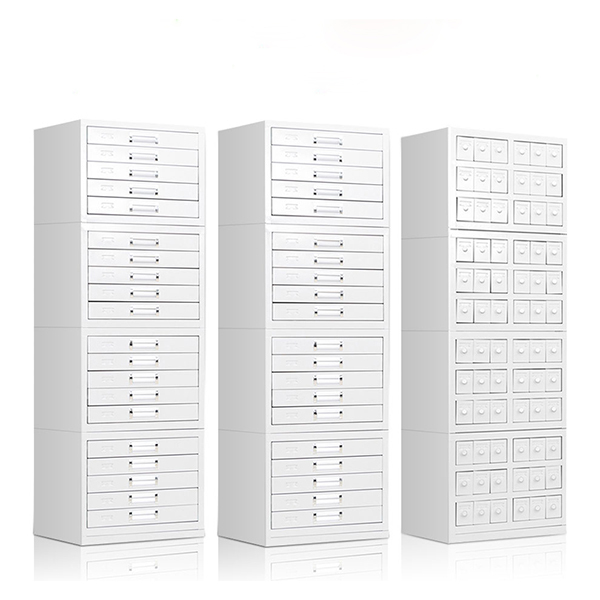

W515 x D480 x H1520mm (Four section)
Single section unit has 5 drawers
It holds about 4000 blocks for single section, and about 16000 blocks for whole set four section cabinet; 12500 slices for single section, and about 50000 slices for whole set four section cabinet; 3000 slices for single section, and about 12000 slices for whole set four section cabinet.
