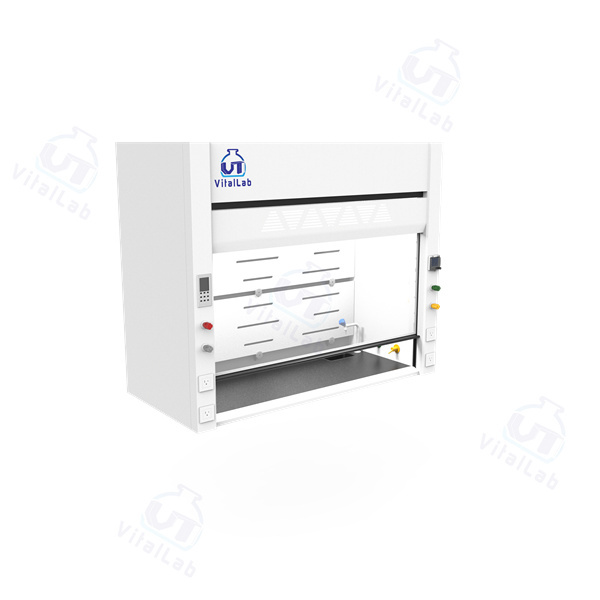

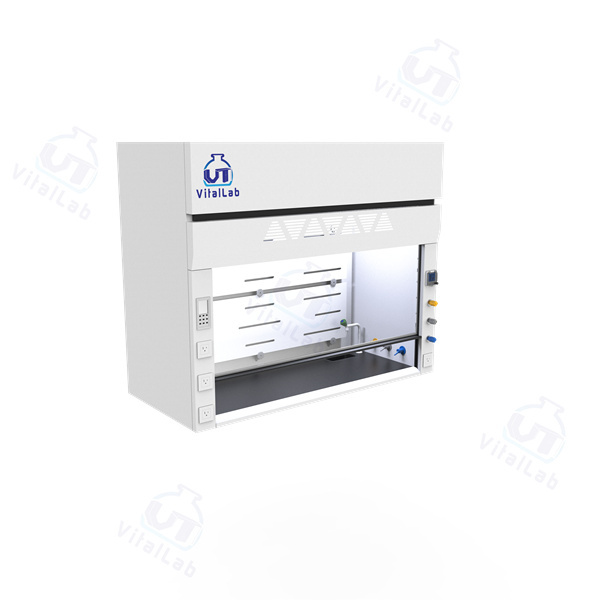

Benchtop fume hood is a compact and practical ventilation device placed on the laboratory table. Its size is relatively small, and its height is usually suitable for operation on the laboratory table. It is generally compact as a whole and won't take up too much desktop space.
|
MODEL |
BTFH-1200 |
BTFH-1500 |
BTFH-1800 |
|
EXTERNAL DIMENSION (W*D*H)(MM) |
1200*850*1500 |
1500*850*1500 |
1800*850*1500 |
|
INTERNAL DIMENSION (W*D*H)(MM) |
960*680*1150 |
1260*680*1150 |
1560*680*1150 |
|
EXHAUST AIR VOLUME |
700-1300m³/h |
900-1700m³/h |
1300-2100m³/h |
|
AIR VELOCITY |
0.3～0.8 m/s |
||
SPECIFICATION
1.Hood body and baffle:Steel fume hood: 1.0mm full-thickness high-quality cold-roll steel with epoxy resin powder coated upper and lower enclosure body. With 5.0mm thickness compact laminate baffle and inner.
PP fume hood:8.0mm full-thickness acid and alkali proof PP upper and lower enclosure body. With 8.0mm thickness PP baffle and inner.
Stainless steel fume hood: 1.0mm full-thickness high-quality 304/316 stainless steel upper and lower enclosure body. With 1.0mm thickness stainless steel baffle and inner.
2.Standard Work Surface: Phenolic Resin.
Optional: Epoxy Resin/PP/Stainless Steel/Ceramic/Trespa.
3.Controller: Intelligent switch with digital display, multiple controls such as power on, fan, lighting, socket, sterilization, damper, etc.
4.Glass sash: Use explosion-proof 5mm tempered glass, aluminum alloy sash handle. It is designed by the weight balance method in the mechanical principle, and the left and right are connected by synchronous wheels.
5.Lighting: Equipped with LED 30W purification lamp, the luminosity is greater than 300LUX,
6.Standard accessories:
1x bench-mounted single water tap
1x PP oval cupsink
4x Electrical Outlets
1x 250mmφ PP hood.
7.Optional accessories:
Remote Controlled Fixture gas&water faucet.
Distillation Grid Kit.
Acid and flammable base cabinet.
Exhaust blower and pipe.
