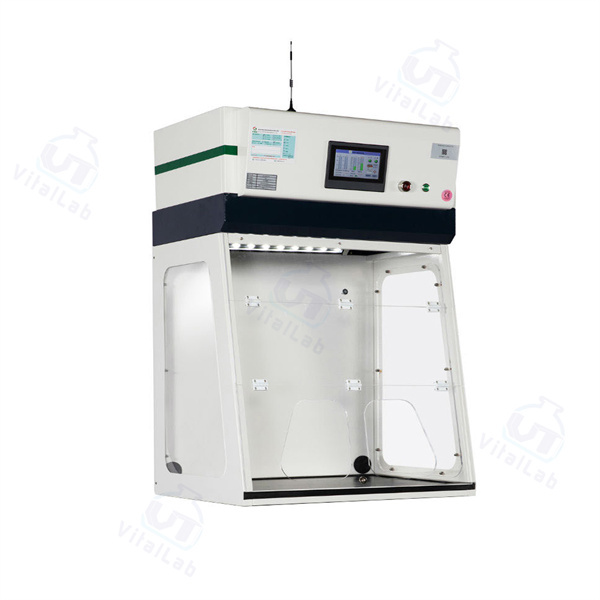

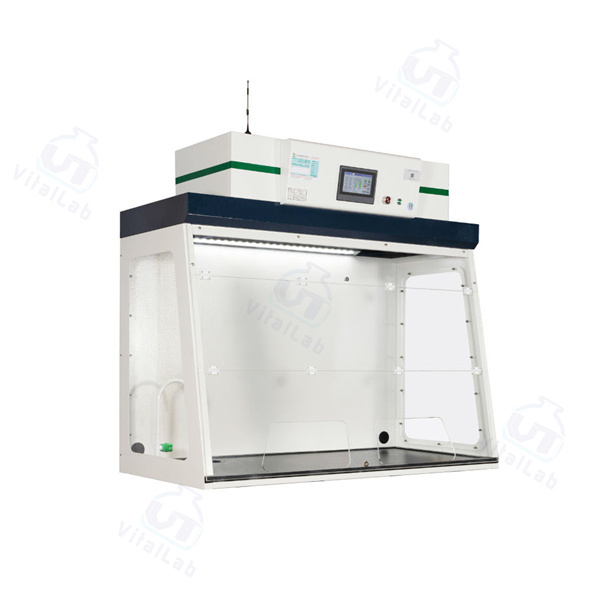

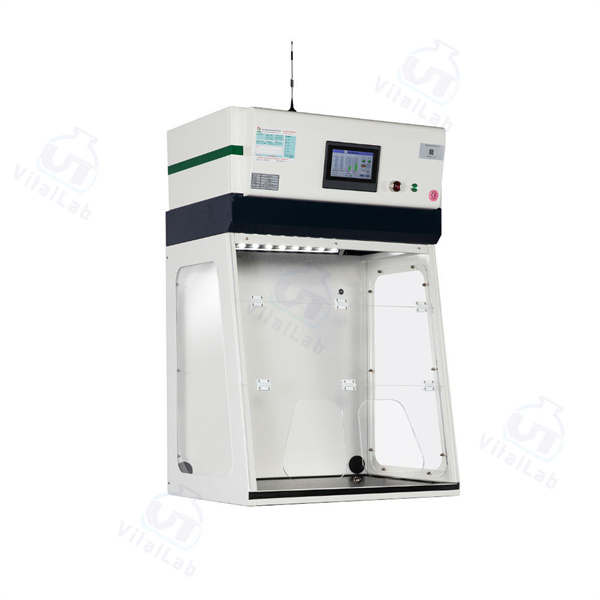

Benchtop Ductless Fume Hood

WORKING PRINCIPLE

1. Air Inlet Air's drawn from lab into fume hood, creating negative pressure. Stable face wind speed shields users from chemicals.
2. Multi-filtration System Fan sucks harmful gases up for filtration, then returns clean air. Cabinet controls gas, stops pollution.
3. Clean Lab Air Use proper filters for ops, purify air, remove chemical smells, boost lab cleanliness.
4. Purify Surrounding Air Fume hood's filtration purifies indoor air.

ADVANTAGE AND DISADVANTAGE

ADVANTAGES:

Flexible installation. It is not restricted by the ventilation duct layout and is suitable for laboratories with limited space or where it is difficult to lay ducts.

Space-saving and cost-reducing. There is no need to reserve duct space or carry out complex installation projects, and sometimes the price is more favorable.

Easy to move and beneficial for rearrangement. It facilitates equipment management and adapts to diverse experimental requirements.

DISADVANTAGES:

Limited filtration. In the face of high-concentration and complex harmful substances, purification is incomplete.

Filters need to be replaced regularly. The maintenance workload is large. If not replaced in time, there is a risk of leakage and the cost is high.

SPECIFICATION

1. Hood & Base Cabinet: Made of ≥1.2mm galvanized steel sheets, with epoxy resin electrostatic spraying and a durable lead-free anti-chemical coating to maintain smoothness and resist corrosion and moisture.
2. Front & Side Panels: Using ≥6mm acrylic sheets, which are weather-resistant, chemical-resistant, anti-aging, colorless and transparent, providing visual comfort and a nice look.
3. 7-inch LCD Touch Screen: With a high-definition resolution of 1024*600, offering good vision.
4. Real-time Temperature & Humidity Monitoring System: Displays temperature and humidity, sets alarm values to ensure safe use.
5. Fan Monitoring: Alerts for failures and allows online speed adjustment to meet air volume needs of different chemical operations.
6. Filter Saturation Alarm System: Equipped with double-layer filters and dual VOC probes. One monitors indoor air quality, the other checks filter saturation. Replace the filter if the concentration exceeds the set value for a long time.
7. 24V PSC Fan Imported from the US: Stable performance, ultra-quiet, without spark and static electricity.
8. High-efficiency Filtration System: Selects and arranges filters according to particle size, following ASTM standards, strongly adsorbing acidic and organic gases. The HEPA filter has a 99.995% filtration efficiency for particles > 0.3um.
9. LED Lamp: Has the power equivalent to a 25W fluorescent lamp, generates no heat, doesn't affect the experimental temperature, and is energy-efficient, environmentally friendly and durable.
10. Epoxy Resin Worktop: With excellent chemical stability, strong corrosion resistance, good impact resistance without damage, high temperature resistance, long service life, without delamination, expansion or cracking.
11. Process Monitoring Function: Customers can view the real-time equipment status and remotely set parameters via mobile phone, and receive alarm messages.
