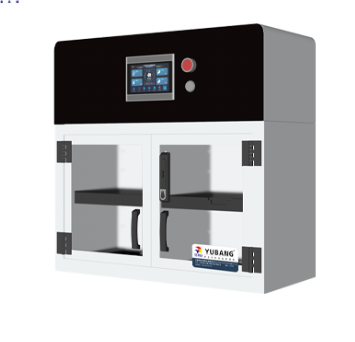

The ductless air purification medicine cabinet series is designed for storing toxic & hazardous chemicals, suitable for various fields. It can hold most lab chemicals. Its outstanding feature is the air purification function, purifying cabinet gas and lab air 24/7. High-efficient and eco-friendly, it provides a solution for a safe & clean lab environment.

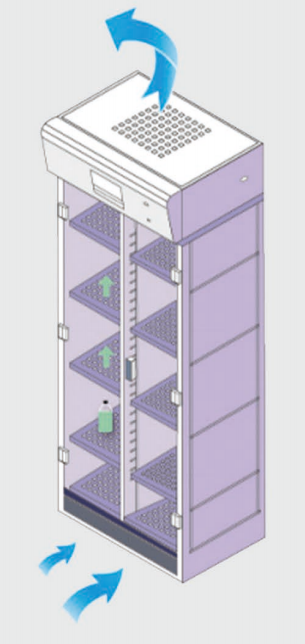

WORKING PRINCIPLE
Fan: Top fan creates negative pressure, draws in lab air.
Gas Filtration: Harmful gases enter filter module, get filtered.
Purification: Clean air returns, safe for health.
Lab Air Purification: 24h operation, keeps air clean (cabinet on 24h).
ADVANTAGE
Ductless, easy install, recycles air, new & green.
Top optional filter mods for chem storage needs.
Modular filtration, filters exp. waste for clean env.
Independent, no AC energy use, energy-efficient.
Mobile, convenient access, boosts efficiency.
SPECIFICATION
Metal Components: ≥1.2mm galvanized steel, epoxy resin spray, with durable, lead-free, chemical-resistant coating to resist corrosion and moisture.
Door Panel: ≥6mm acrylic, weather & chemical resistant, non-aging, transparent for easy inspection and an elegant look.

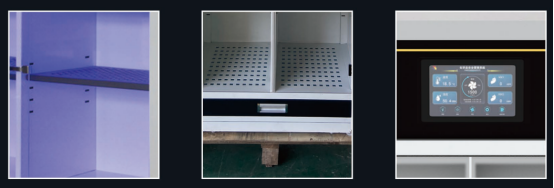

Shelf: ≥1.2mm galvanized steel, anti-corrosion, acid-alkali resistant, height adjustable for different items.
Acid and Alkali Boxes: PP material, stores strong acids/alkalis safely.
7-inch LCD: Monitors temp, hum, env, fan, VOC in real-time, alarms on threshold deviation.
PSC Fan: 24V, stable, ultra-quiet, no spark/stat for safety.
High-Efficiency Filtration: Follows ASTM, filters acids/orgs, strong adsorp., HEPA filters 99.995% of >0.3um particles.
LED Lighting: Equiv. 25W, no heat, safe, energy-saving, long-lived.
SIZE
|
MODEL |
SIZE(WXDXH) (MM) |
WEIGHT (KGS) |
STANDARD CONFIGURATION |
SHELF |
|

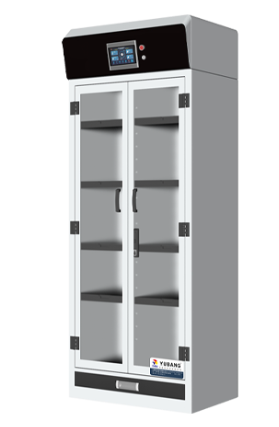

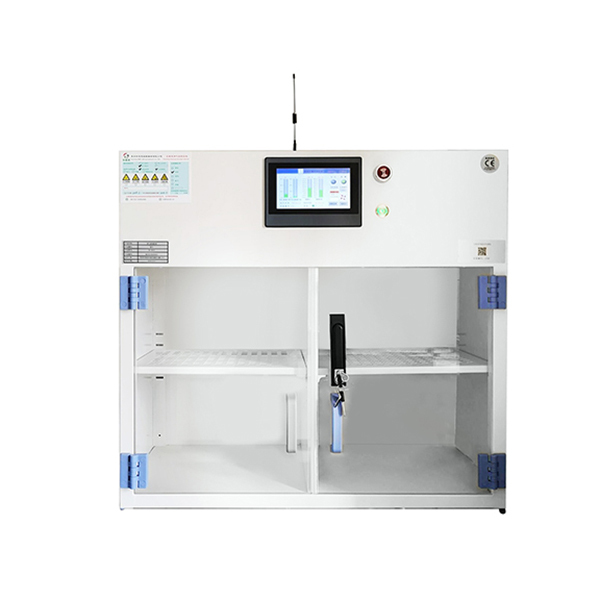

PMC-01 |
819*354*725 |
35 |
2 block filter, 1pc fan, double doors |
2 |
|

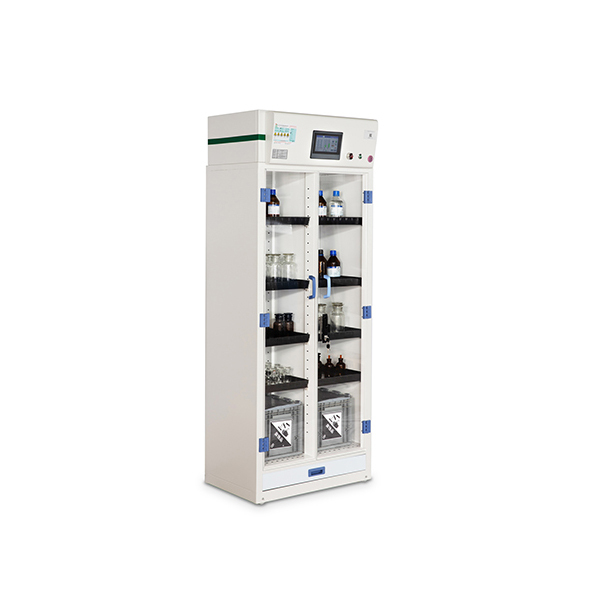

PMC-02 |
800*510*2080 |
120 |
8 block filter, 1pc fan, double doors |
8 |
|

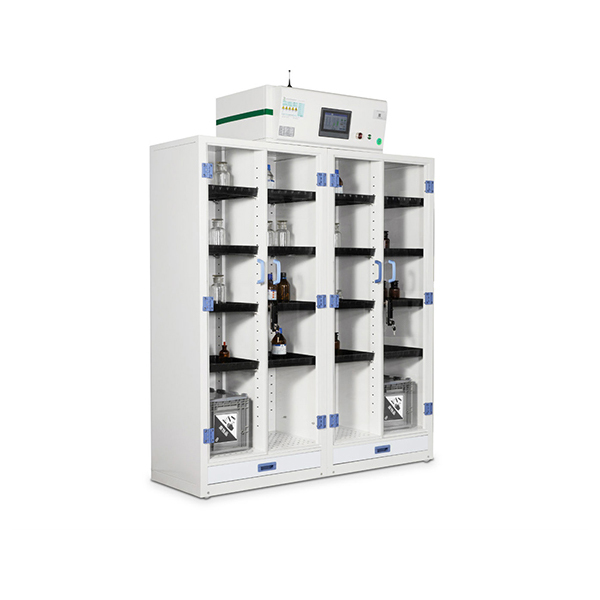

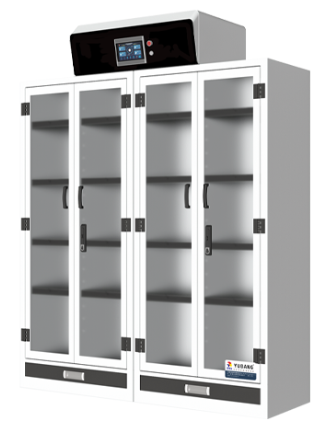

PMC-02 |
1600*510*2080 |
240 |
8 block filter, 1pc fan, four doors |
16 |
